Plate & Fin Design
AW Series
Air Cooled Heat Exchangers / Oil Coolers by Coolace
Design Type
Plate & Fin
Max Return Flow
20 LPM Max
Motor Capacity
Up to 5 HP
Primary Function
Offline & Return Line
AW Series of the Air Cooled Heat Exchangers / Oil Coolers by Coolace are plate fin design oil coolers that can be used for offline and return line cooling of hydraulic systems. AW series heat exchangers are economical oil coolers recommended for small hydraulic power packs with installed motor capacity of up to 5 HP and pump flows of about 12 LPM (max return oil flow of 20 LPM should not be exceeded).
These are also an ideal solution for drain line cooling of high pressure variable displacement pumps. Other applications include gearbox oil cooling & die cooling.
Two models available: AW0608 with a single fan & AW0608L with two fans.
Single Fan Model
AW 0608®
Air Cooled Oil Cooler Model AW 0608®
Oil Flow: 1-20 LPM
Capacity: Upto 1085 Kcal/h (1.3kW)
Double Fan Model (High Capacity)

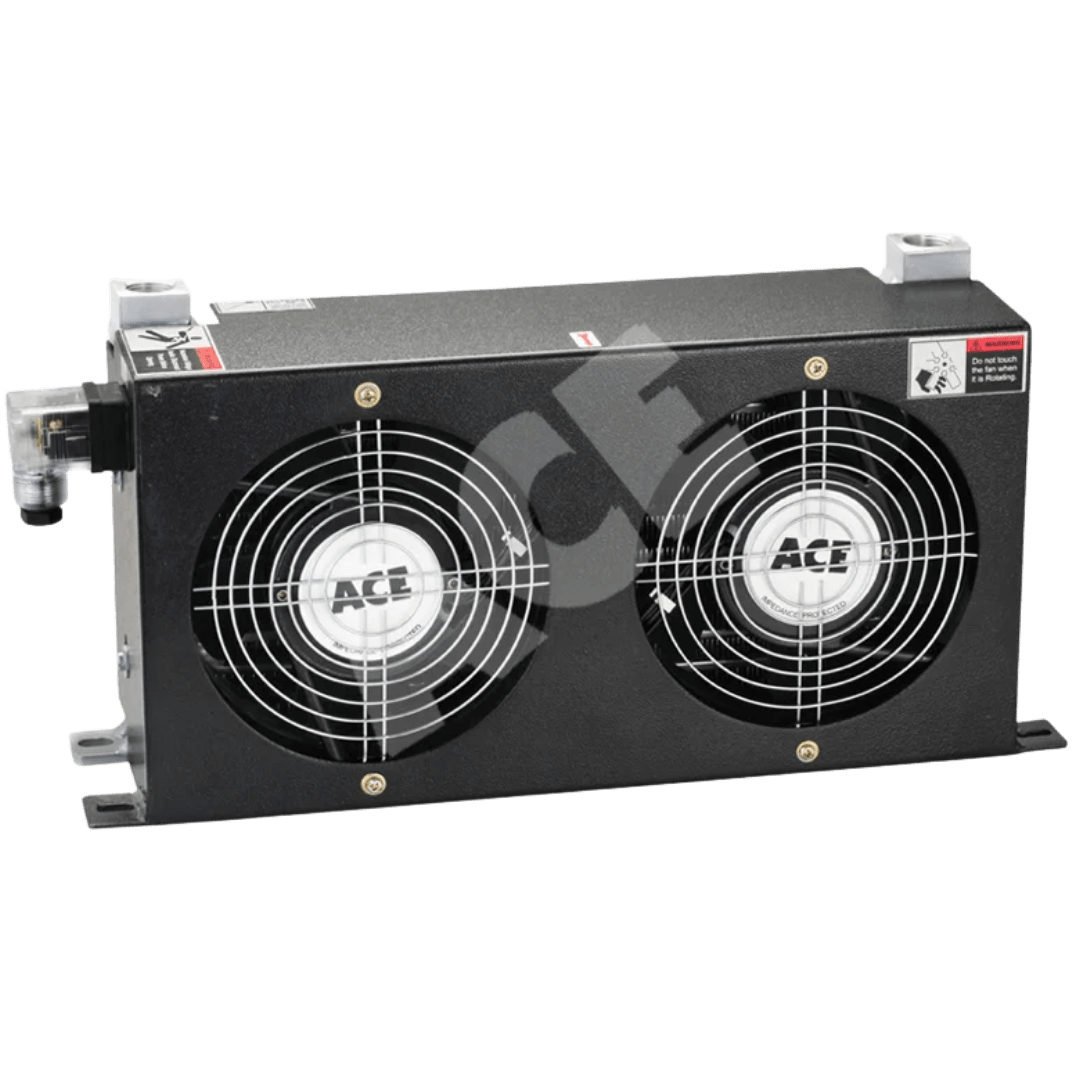

AW 0608® L
Air Cooled Oil Cooler Model AW 0608® L
Oil Flow: 1-20 LPM
Capacity: Upto 1600 Kcal/h (1.9kW)
