Product Series

AL Series

Air Cooled Heat Exchangers / Oil Coolers by Coolace

Max Oil Flow Up to 10 LPM
Working Pressure Up to 70 Bar
Design Type Bar & Fin D-Cup

AL Series of air cooled heat exchangers / oil coolers by Coolace are bar and fin type heat exchangers, also known as D cup coolers. They are recommended for drain lines of variable displacement pumps of up to 70 bar working pressure. They are economical heat exchangers / oil coolers that can be used in applications where there is a steady oil flow of up to 10 LPM (Max pressure 6 bar) with no or little pulsation.

AL–608 100% equivalent to AMC 217.

These are small yet very efficient hydraulic oil coolers. AL series oil coolers are designed to be installed in drain line of variable displacement pumps. Typical applications include CNC & VMC machines, CNC & VMC Clamping fixtures & other hydraulic power packs with variable displacement pumps.

Featured Model Air Cooled Oil Cooler Model AL 608®

Click to view product details

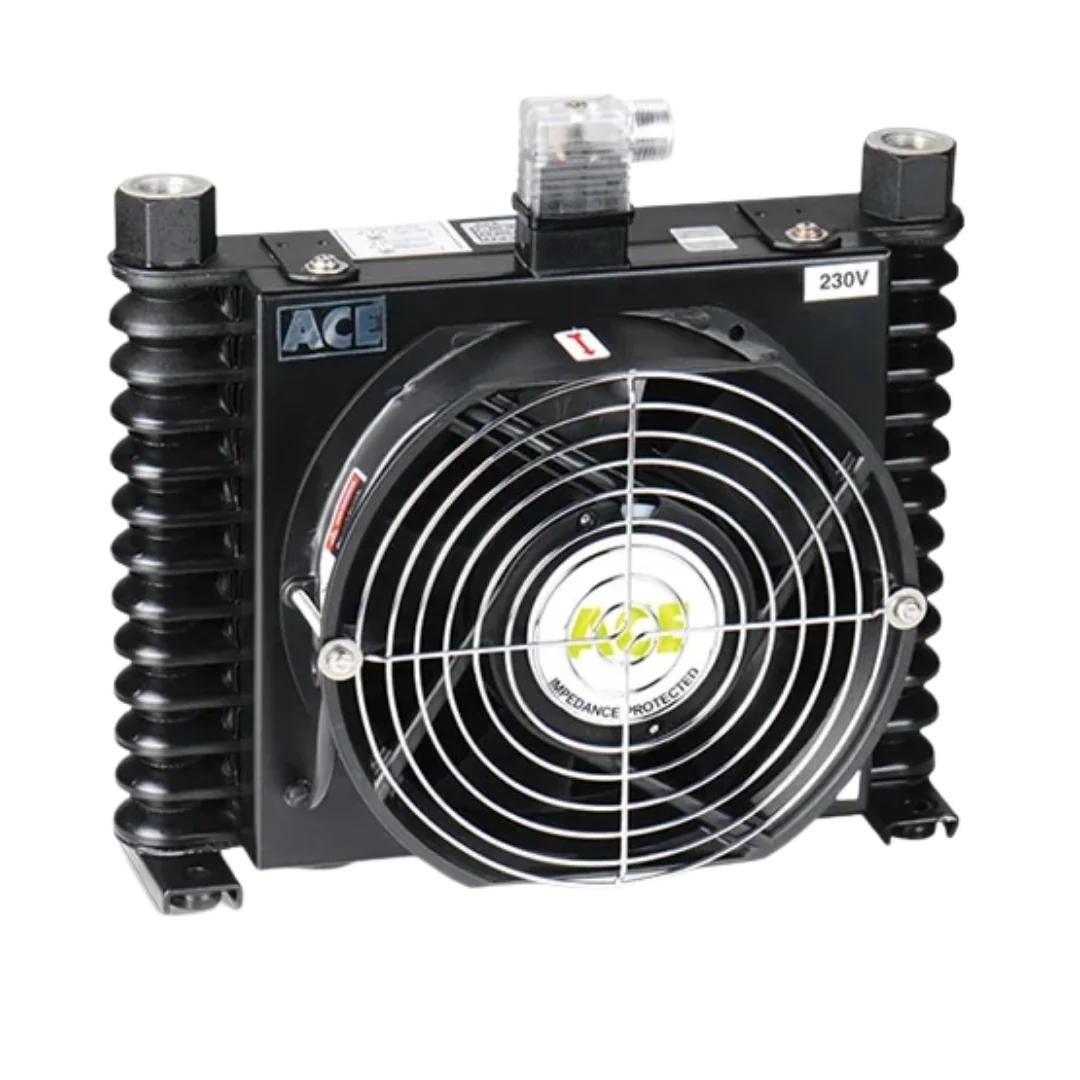

Air Cooled Oil Cooler Model AL 608®

Oil Flow: 1-10 LPM Capacity: Upto 1030 Kcal/h (1.2 kW)
